Multi-Channel Meter

07-1.

CT Meter (GEMS3512 series) Multi-Channel Meter(12-Channel)

Features

  • Measure data such as current, voltage, active power, power factor, line voltage, phase voltage, harmonics, frequency, instantaneous voltage, current rise, etc.
  • Monitor power on up to 12 Ch using one instrument.
  • Connect to the cloud EMS system via Ethernet (Wi-Fi support only if the option is selected)

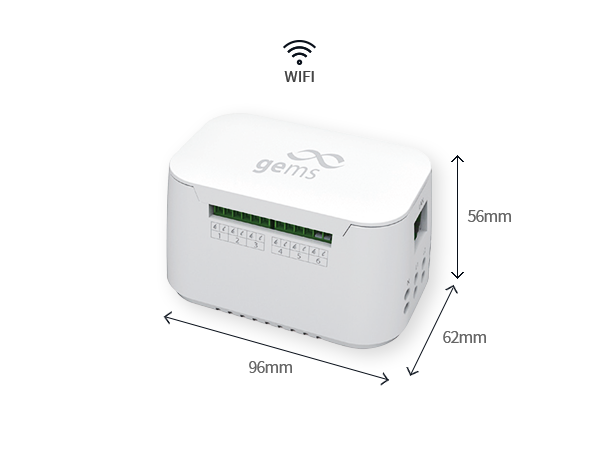

  • Compact size (62x96x56mm) which can be installed in tight spaces

Specifications

  • Input Power 100~240V AC/DC
  • Voltage Measurement
    • Measurement Range 0-690 VAC (In-line Voltage) Phase Voltage: V1, V2, V3-N Line Voltage: V1-V2, V2-V3, V3-V1
    • Frequency 45~65Hz
  • Current Measurement
    • Measurement Range0-3,000A per channel
    • Measurement MethodCT or Rogowski Coil
  • Environment
    • Operating Temperature -10℃ ~ 55℃
    • Storage Temperature -25℃ ~ 70℃
  • Other Functions
    • Communication Interface Ethernet x 1 (Modbus TCP)

Wiring Method

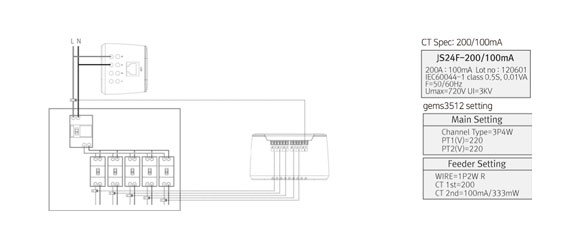

1P2W, 220V, CT = JS24F200/100mA (Model = gems3512 - AT)

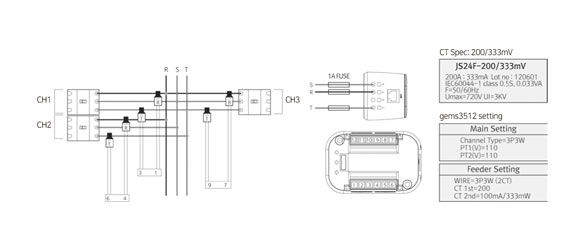

3P3W 2CT, 110V, CT = JS24F200/333mA (Model = gems3512 - VT) When connecting 3P3W (N-A), the voltage must be below 265V.

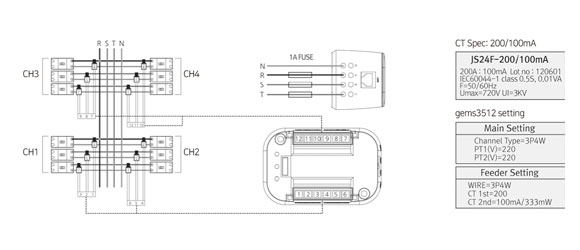

3P4W, 220V, CT = JS24F200/100mA (Model = gems3512 - AT)

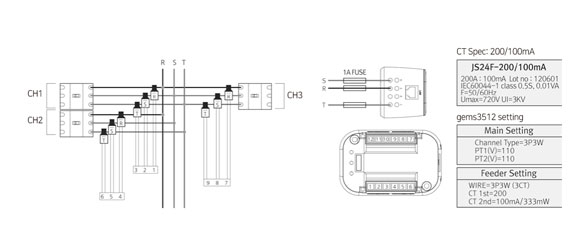

3P3W 3CT, 110V, CT = JS24F200/100mA (Model = gems3512 - AT) When connecting 3P3W (N-A), the voltage must be below 265V.
07-2.

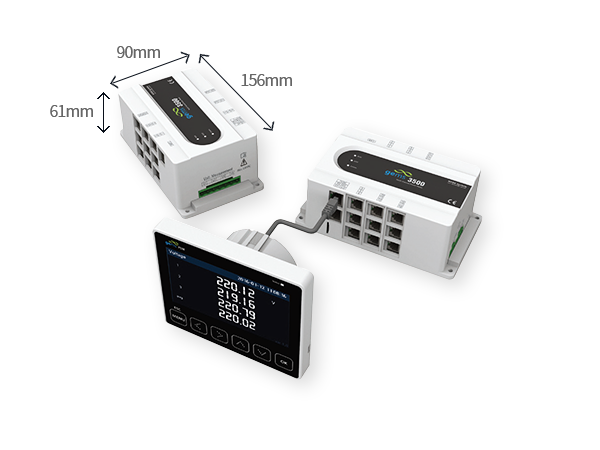

CT Meter (GEMS3500 series) Multi-Channel Meter(18- to 54-Channel)

Features

  • Measures data such as current, voltage, active power, power, power factor, line voltage, phase voltage, temperature, harmonic wave, frequency, instantaneous voltage, current rise, etc.
  • Power monitoring for up to 54Ch with a single instrument
  • Can be synced with cloud EMS system using Ethernet connection
  • Enables real-time on-site power monitoring using a separate display device

Specifications

  • Input Power 100 ~ 240V AC/DC
  • Voltage Measurement
    • Power Output Measurement Range : 0 ~690VAC(In-line Voltage) Phase Voltage : V1, V2, V3-N Line Voltage : V1-V2, V2-V3, V3-V1
    • Frequency 45 ~ 65Hz
  • Current Measurement
    • Measurement Range 0 ~ 3,000A per channel
    • Measurement Method CT or Rogowski Coil
  • Environment
    • Operating Temperature -10°C ~ 55°C
    • Storage Temperature -25°C ~ 70°C
  • Other Functions
    • Temperature Measurement Range 0°C ~ 55°C
    • I/O Port Analog Input x 1 Digital Input x 1 Digital Output x 1
    • Communication Interface RS-232 x 1 RS-485 x 1 (Modbus RTU) Ethernet x 1 (Modbus TCP)

Wiring Method

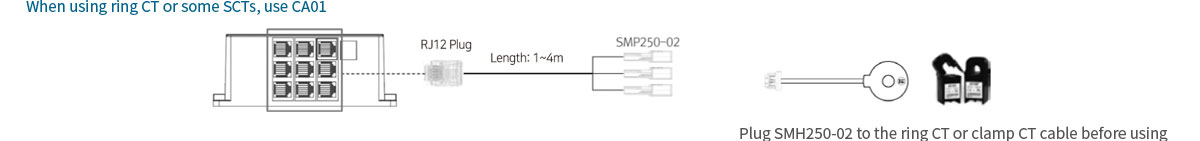

When using ring CT or some SCTs, use CA01. Plug SMH250-02 to the ring CT or clamp CT cable before using

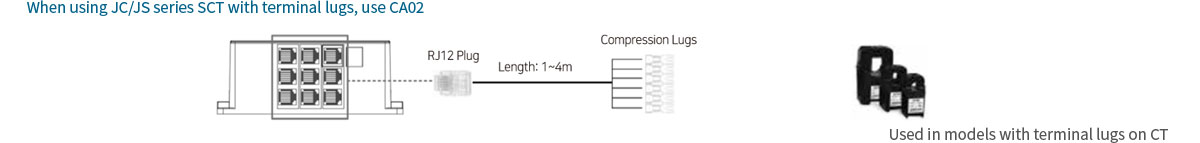

When using JC/JS series SCT with terminal lugs, use CA02. Used in models with terminal lugs on CT

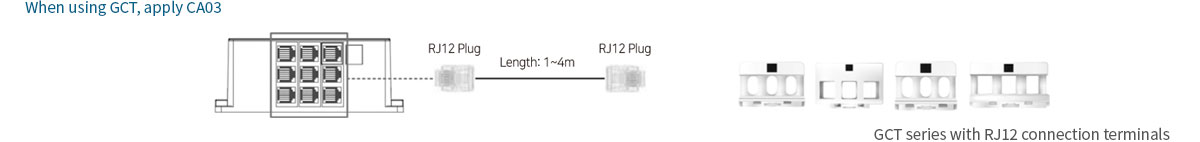

When using gCT, apply CA03. gCT series with RJ12 connection terminals

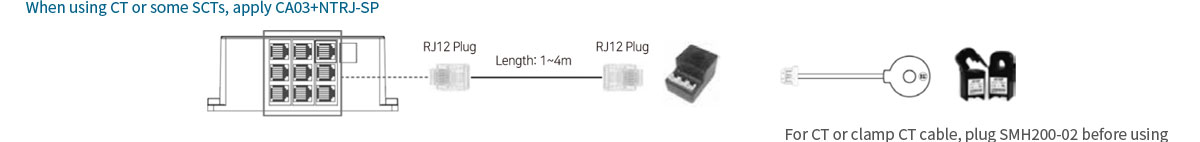

When using CT or some SCTs, apply CA03+NTRJ-SP. For CT or clamp CT cable, plug SMH200-02 before using

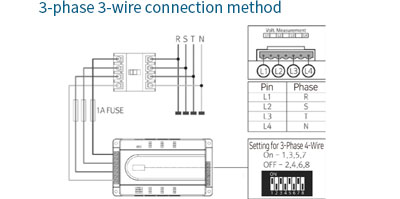

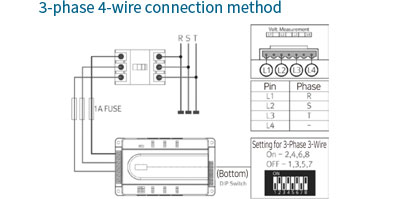

3-phase 4-wire connection method 3-phase 3-wire connection method

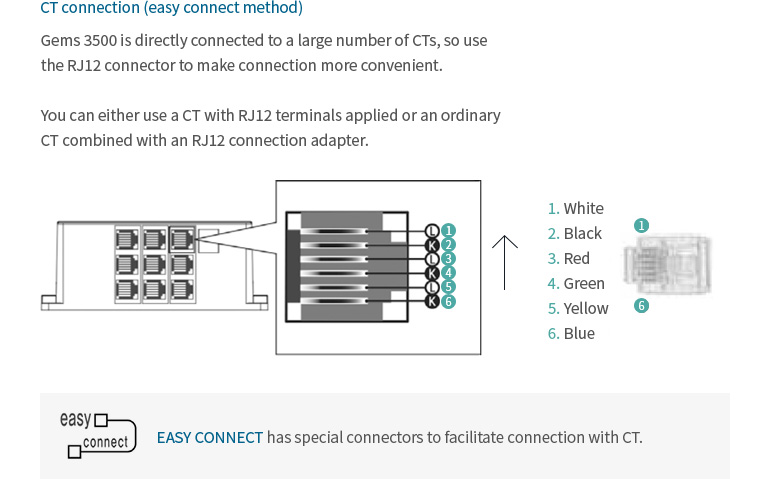

CT connection (easy connect method). Gems 3500 is directly connected to a large number of CTs, so use the RJ12 connector to make connection more convenient. You can either use a CT with RJ12 terminals applied or an ordinary CT combined with an RJ12 connection adapter. / Color : 1. White, 2. Black, 3. Red, 4. Green, 5. Yellow, 6. Blue. / EASY CONNECT has special connectors to facilitate connection with CT.
07-3.

GEMSPDM-430 Multi-Channel Display Device

Main Functions

  • Used as field monitoring equipment for CT Meters
  • Clear information transmission using high-definition 4.3 ”TFT LCD, intuitive and easy operation using large front touch key
  • Connected to CT Meter without seperate power supply
  • Supports International Standards for Wall-Mounted Installation and Quick Installation using Fixed Clips

Part Number

제품 코드의 모델번호, 설명에 관한 정보제공
Part Number Description Part Number Description
gemsPDM-A3 PDM for gems3500 gemsPDM-A5 gems5200 / PDM for gems5500

Specifications

멀티채널 전력량계의 옵션 멀티채널 디스플레이 장치의 주요 Specifications으로 옵션 멀티채널 디스플레이 장치 주요 Specifications설명 참조

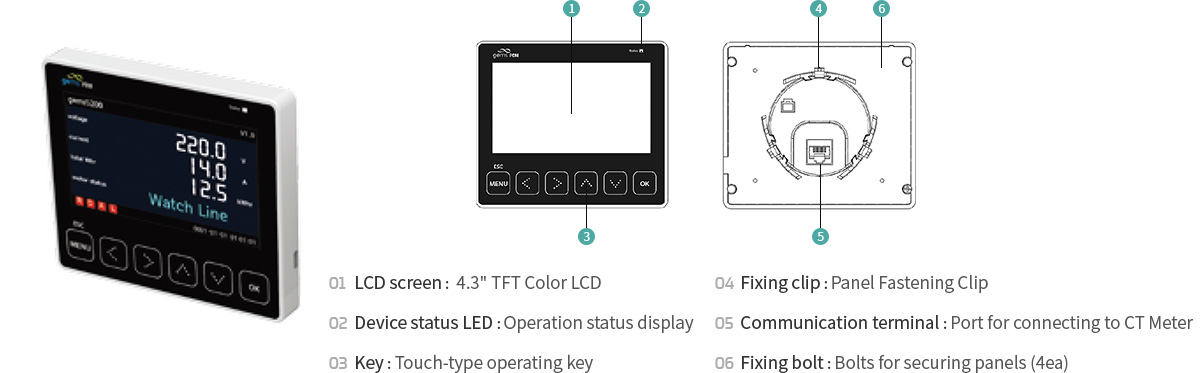

Specifications
  • 1LCD screen 4.3’” TFT Color LCD
  • 2 Device status LED Operation status display
  • 3 Key Touch-type operating key
  • 4 Fixing clip Panel Fastening Clip
  • 5 Communication terminal Port for connecting to CT Meter
  • 6 Fixing bolt Bolts for securing panels (4ea)

Dimensions and Installation Method

멀티채널 전력량계의 옵션 멀티채널 디스플레이 장치의 주요 Specifications으로 옵션 멀티채널 디스플레이 장치 치수 및 설치방법 설명 참조

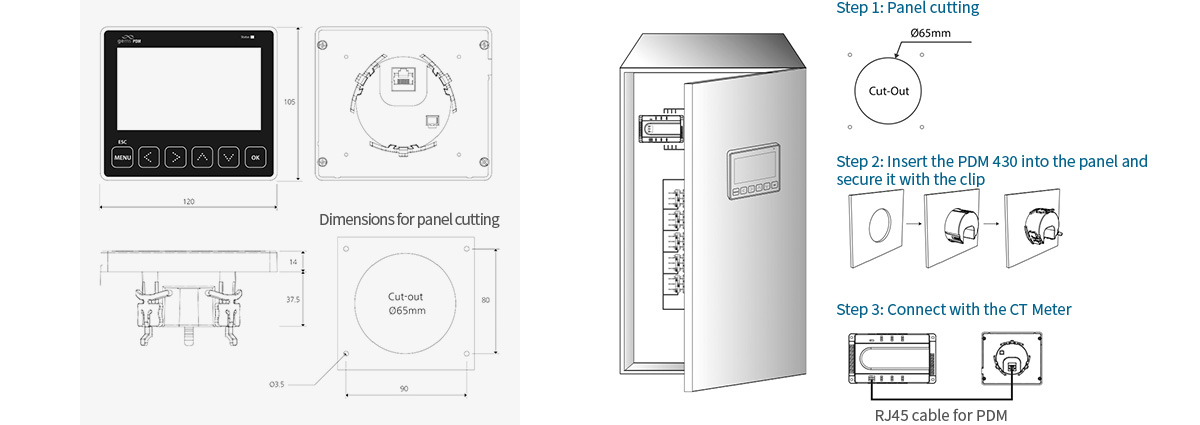

Dimensions and Installation Method
  • Dimensions for panel cutting
  1. Step 1: Panel cutting
  2. Step 2: Insert the PDM 430 into the panel and secure it with the clip
  3. Step 3: Connect with the CT Meter RJ45 cable for PDM
