Smart-eye AC/DC Meter

Features

  • Measurement and alarm of voltage, current, temperature, and power use by each phase with one module
  • Easy installation and convenient usage
  • Real-time power monitoring and display of electric charges imposed/expected
  • Setup of range of alarm by load and saving
  • Power monitoring available for all loads regardless of number of loads
  • Wired/wireless LAN data communication enabling distant and remote monitoring
  • Measurement of current, voltage, active power, amount of power, power factor, line voltage, phase voltage, temperature, harmonics, current rise, etc.
  • Collects at least 200ms (0.2 seconds) of data through 1/4000 samplings per second
  • Collect date per minimum of one second using the cloud EMS system
  • Fire hazard prevention with busbar temperature sensors

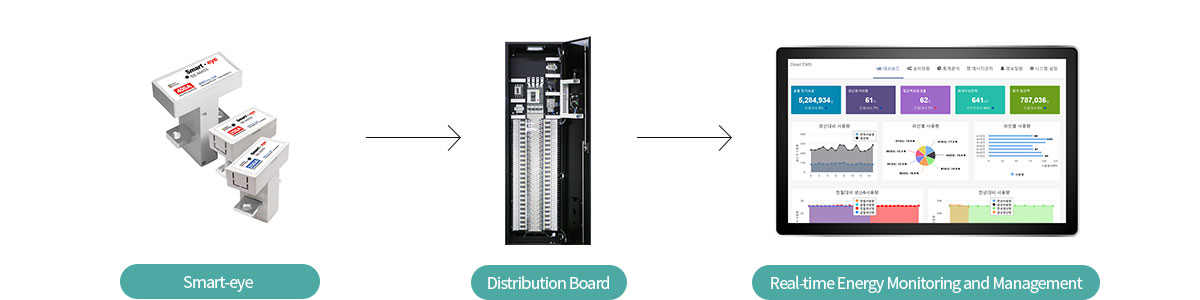

Smart-eye AC/DE meter , 분전반, 실시간 에너지 모니터링 관리

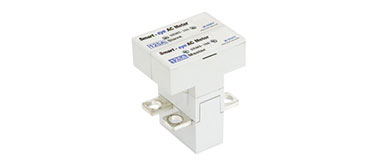

AC Meter Specifications

  • Input Power DC 12V ±5%
  • Voltage Measurement
    • Measurement Range 0 ~ 600 VAC(Line Voltage) Phase Voltage: V1, V2, V3-N Line Voltage: V1-V2, V2-V3, V3-V1
    • Frequency 50 ~ 60Hz
    • Measurement Method Jig Pin Direct Connection
  • Current Measurement
    • Measurement Range 0 ~125A, 0 ~250A, 0 ~ 400A
    • Measurement Method IMC-Hall Current Sensor
  • Temperature Measurement
    • Measurement Range 0℃ ~ 60℃ (Based on Bus-bar)
  • Environment
    • Operating Temperature -20°C ~ 60°C
    • Storage Temperature -40°C ~ 70°C
  • Other Functions
    • Communication Interface RS-485 x 1(RJ45, UTP Cable)
Single Phase

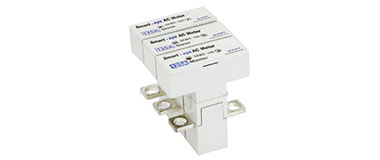

3-Phase

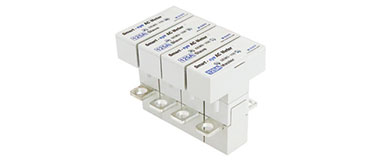

3-Phase 4-Wire

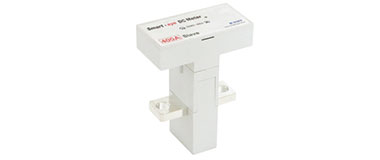

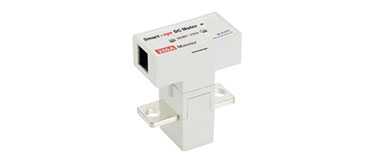

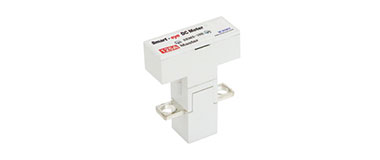

DC Meter Specifications

  • Input Power DC 12V ±5%
  • Voltage Measurement
    • Measurement Range 0 ~ 1,000VDC
    • Measurement Method Direct Jig Pin Contact
  • Current Measurement
    • Measurement Range 0 ~125A, 0 ~250A, 0 ~ 400A
    • Measurement Method IMC-Hall Current Sensor
  • Temperature Measurement
    • Measurement Range 0°C ~ 60°C (Based on Bus-bar)
  • Environment
    • Operating Temperature -20°C ~ 60°C
    • Storage Temperature -40°C ~ 70°C
  • Other Functions
    • Communication Interface RS-485 x 1(RJ45, UTP Cable)
125A
250A
400A

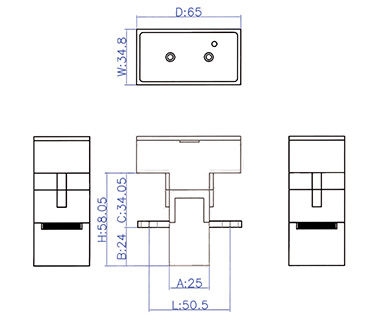

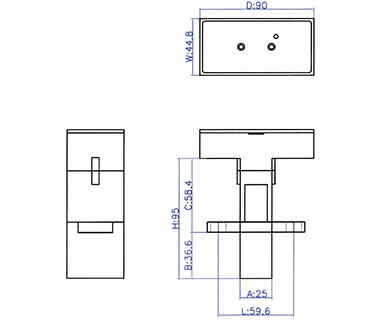

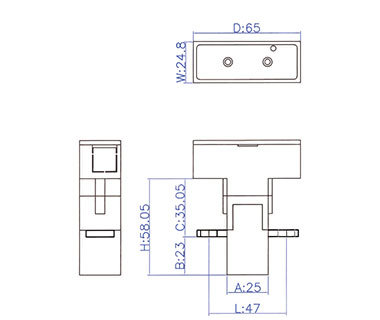

Dimensions

125A
250A
400A

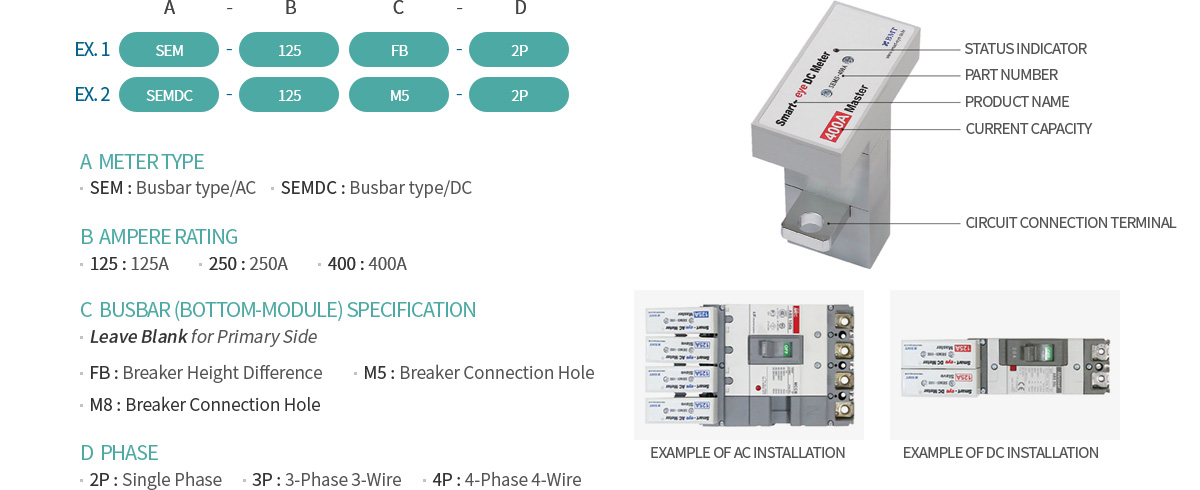

Part Number

스마트아이 모델명에 관한 내용으로 모델명 설명 참조
Part Number

A-B C-D

Ex. 1 SEM-125 FB -2P

Ex. 2 SEMDC-125 M5 -2P

A Analyzer Type
SEM (Busbar type/AC), SEMDC (Busbar type/DC)
B Ampere Rating
125 (125A), 250 (250A), 400 (400A)
C Busbar (Bottom-Module) Specification
Basic: Leave Blank for Primary Side
FB (Breaker Height Difference), M5 (Breaker Connection Hole), M8 (Breaker Connection Hole)
D Phase
2P (Single Phase), 3P (3-Phase 3-Wire), 4P (4-Phase 4-Wire)
  • Status Indicator
  • Part Number
  • Product Name
  • Current Capacity
  • Circuit Connection Terminal
  • Example of AC Installation
  • Example of DC Installation

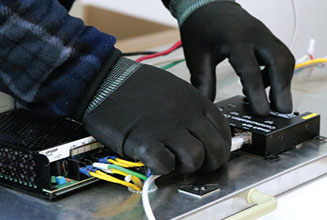

Installation Instruction

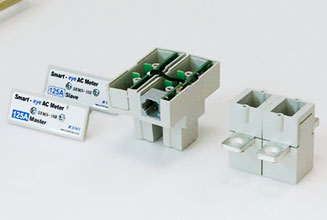

  1. 1. Prepare modules
  2. 2. Select 1st or 2nd position for the bottom-module breaker

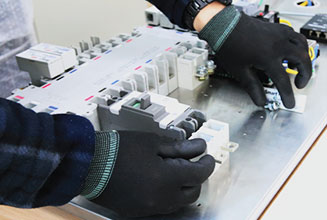

  3. 3. Install bottom-module

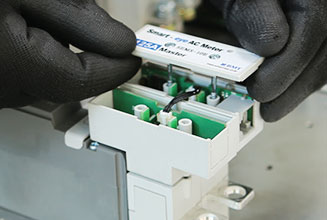

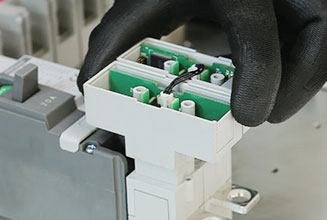

  4. 4. Install top-module
  5. 5. Assemble top-cover

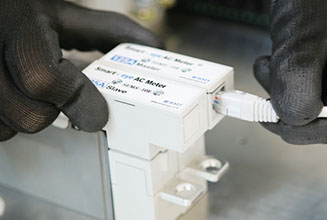

  6. 6. Connect smart-eye communication cable
  7. 7. Connect G/W communication cable

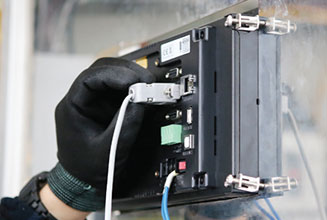

  8. 8. Connect monitor communication cable

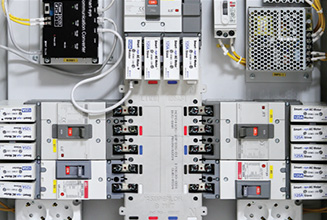

  9. 9. Assembly and installation completed
