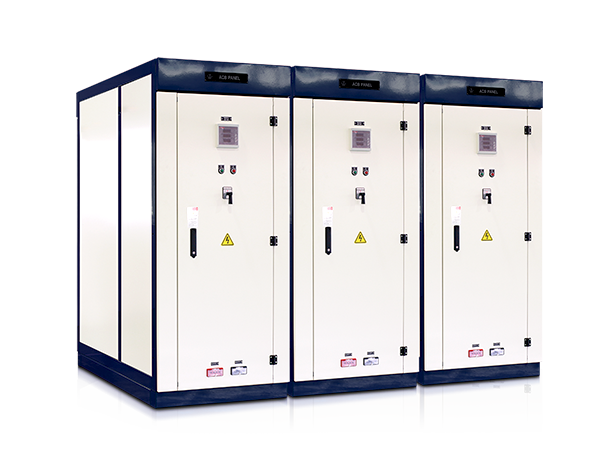

Features of LV Switchboard

• Digital power monitoring device allows the power system to be checked for abnormalities
• Suitable for indoor and outdoor applications
• Earthquake-resistant design

LV Switchboard Specifications

• Rated Voltage 690V
• Rated Current ~4000A, Other Specifications
• Rated Frequency 60/50 Hz
• Rated Short Time Current (1sec) Max.50kA
• Rated Operating Voltage AC 220V, 110V, or other customer spec.
• Protection Degree IP4X, or other customer spec.
• Dimension (mm) (W)800~1400, (D)2000~2500, (H)2100~2550, or other customer spec.
• Certificate KERI Type Test Report (by KERI, Korea), K-Mark, Excellent Performance Certification (by Korean MSS), Excellent Product (by Korean PPS)

Drawings

•

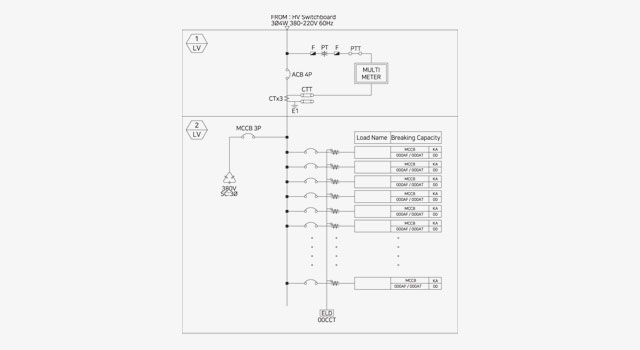

  One-line diagram
•

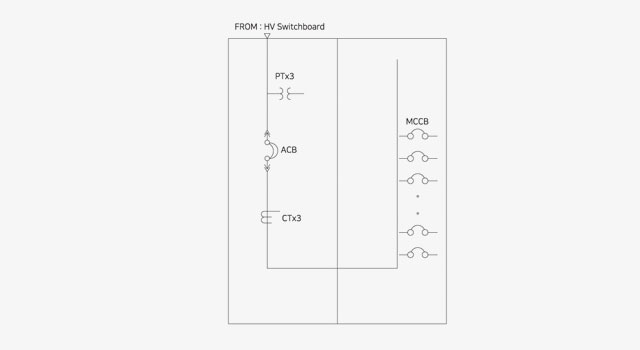

  Basic configuration
•

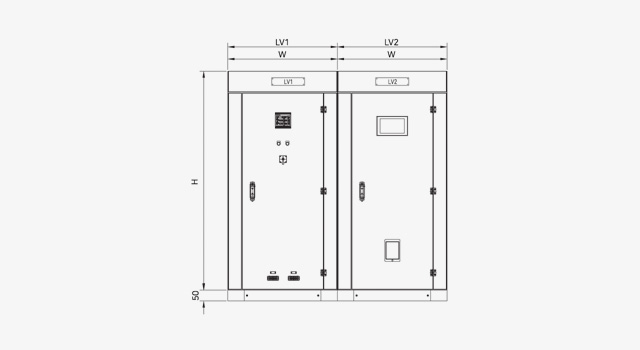

  Front view
•

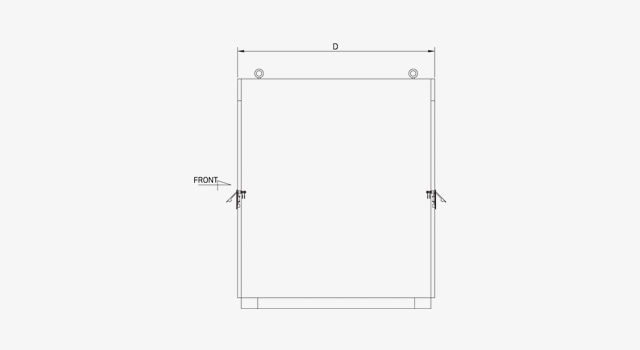

  Right side view
