06.

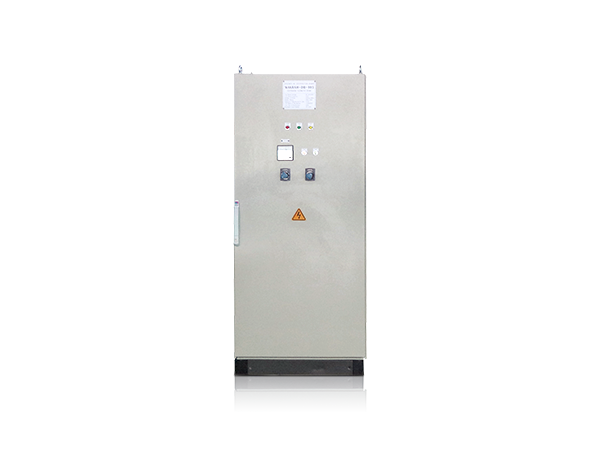

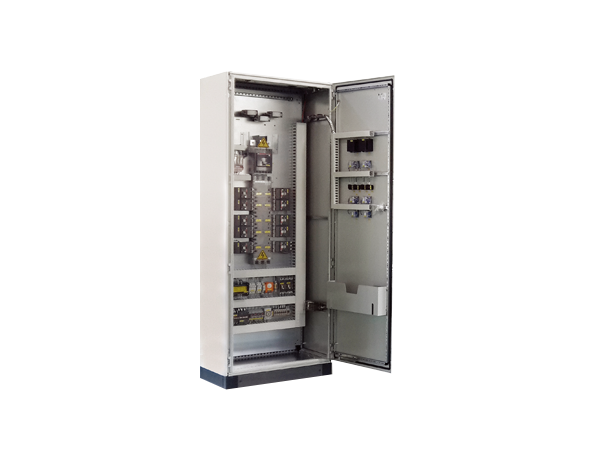

BMT Distribution Board

  • 특허
  • 조달청 조달우수제품
  • 한국산업기술시험원 K 마크
  • 성능인증 마크

Features of BMT Distribution Board

BMT Distribution Board has a low voltage main circuit and provides stable lighting, heating, control and power supply. It is assembled and manufactured with standardized components according to the Korean domestic standard (KEMC 2104), facilitating easy installation and construction. It integrates MCPD (BMT’s patented technology) to improve safety, operability, and economics. Designed and produced for each specific applications, BMT Distribution Boards provide optimal performance and reliability.

BMT Distribution Board Specifications

  • Rated Voltage 690V
  • Rated Current ~800A, or other customer spec.
  • Rated Frequency 60/50 Hz
  • Rated Short Time Current (1sec) Max.25kA
  • Rated Operating Voltage AC 220V, 110V, or other customer spec.
  • Protection Degree IP4X, or other customer spec.
  • Dimension Customer spec.
  • Certificate KERI Type Test Report (by KERI, Korea), K-Mark, Excellent Performance Certification (by Korean MSS), Excellent Product (by Korean PPS)
