DB in Partnership

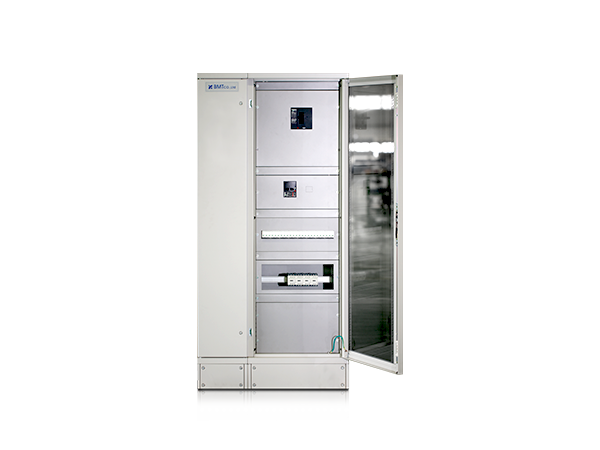

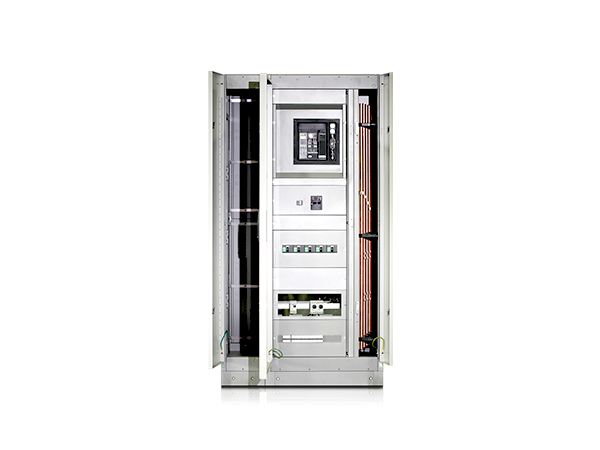

Prisma System (modular assembly-type solution, in compliance with IEC 61439 standards) in partnership with Schneider Electric is specialized for buildings and industries, and provides optimum solutions ensuring consistency of electricity and communication.

Prisma iPM Specification

Electrical Characteristics
  • Rated voltage 690V
  • Rated current 3200, 4000A
  • Rated fraquency 60/50Hz
  • Rated short-time Current(1sec) Max.85kA
  • Neutral network TNC, TNS, IT, TT
Mechanical Characteristics
  • Overall height (mm) Max 2000
  • Depth (mm) 400 / 600 (Front access), 800 / 1000 (Rear access)
  • Width of enclosure (mm) 600 and 800
  • Partitioning Form 1b, 2b, 3b, 4b
  • Degree of Protection (IP) 30, 31, 54 / (IK) 07, 08, 10
Applicable Standards
  • Type Test IEC 61439-1
  • IP Class IEC 60529
