MCCs

04.

MCC

  • 특허
  • 조달청 조달우수제품
  • 한국산업기술시험원 K 마크
  • 성능인증 마크

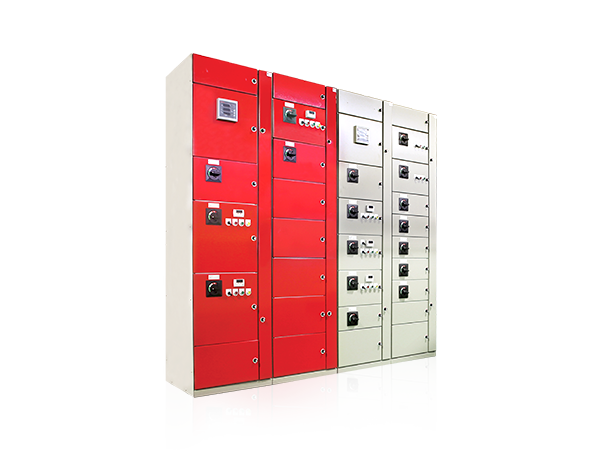

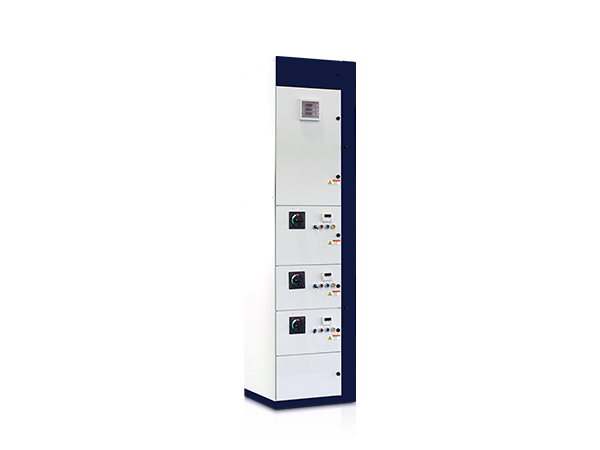

BMT MCC (Motor Control Center) has a compact and safe construction and provides high performance and reliability. Designed to meet various customer requirements and for convenience in capacity change, repair, and maintenance.

MCC Specifications

  • Rated Voltage 690V
  • Rated Current ~800A, or other customer spec.
  • Rated Frequency 60/50 Hz
  • Rated Short Time Current (1sec) Max. 25 kA
  • Rated Operating Voltage AC 220V, 110V, or other customer spec.
  • Protection Degree IP4X, Other Specifications
  • Dimension (mm) (W) 600~1000, (D) 550~800, (H) 2000~2350, or other customer spec.
  • Certificate KERI Type Test Report (by KERI, Korea), K-Mark, Excellent Performance Certification (by Korean MSS), Excellent Product (by Korean PPS)

Drawings

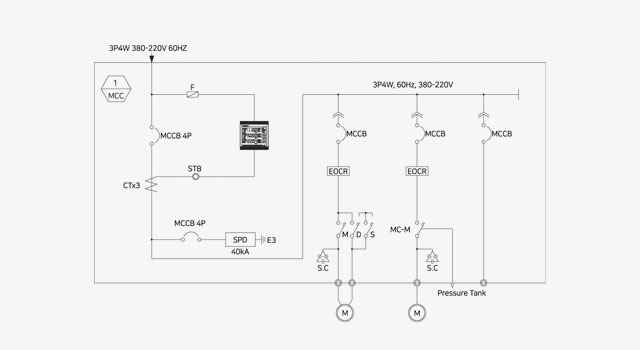

  • One-line diagram

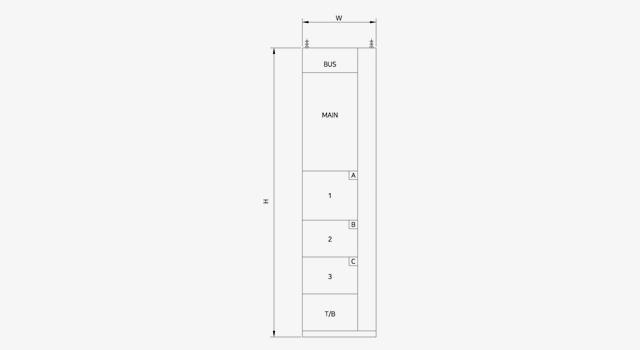

  • Front view

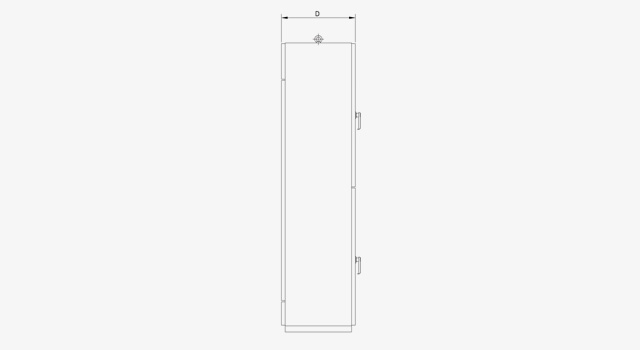

  • Side view

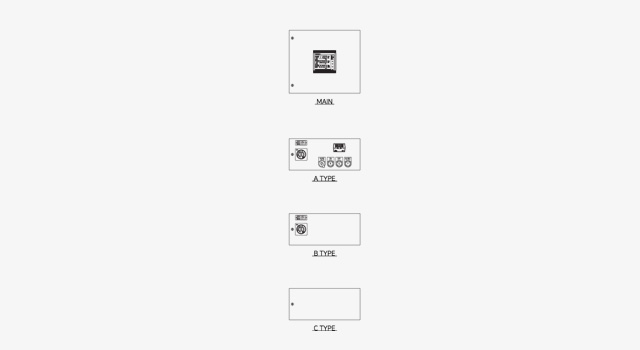

  • UNITS detailed view
NOTE
  • Enclosure Structure Indoor draw-out type
  • Material of Enclosure Steel Plate
    • Front Door : 1.6t or more
    • Rear Door : 1.6t or more
    • Side : 1.6t or more
    • Other : 1.6t or more
  • Installation Indoor self-standing type
