HV Switchboard

01.

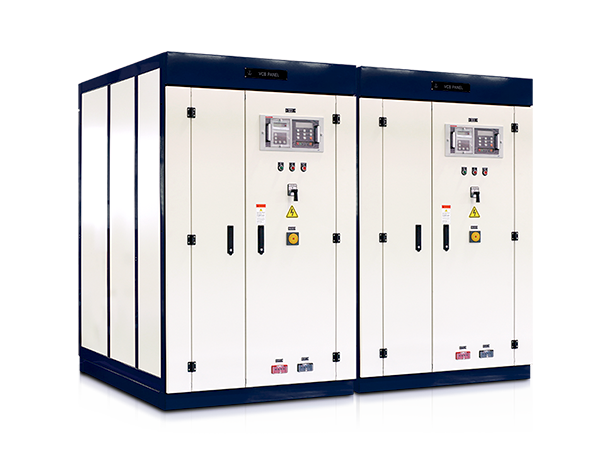

HV Switchboard

  • 특허
  • 조달청 조달우수제품
  • 한국산업기술시험원 K 마크
  • 성능인증 마크

Features of HV Switchboard

  • Size decreased by 40% or more from conventional switchboards
  • Digital power monitoring device for checking system malfunctions
  • Suitable for both indoor and outdoor
  • Earthquake-resistant design(optional)

HV Switchboard Specifications

  • Rated Voltage 24/25.8kV/7.2kV/3.6kV
  • Rated Current ~2000A, or other customer spec.
  • Rated Frequency 60/50 Hz
  • Rated Short Time Current (1sec) Max. 25 kA
  • Rated Operating Voltage AC 220V, 110V, or other customer spec.
  • Protection Degree IP4X, or other customer spec.
  • Dimension (mm) (W)800~1400, (D)2000~2500, (H)1800~2550, or other customer spec.
  • Certificate KERI Type Test Report (by KERI, Korea), K-Mark, Excellent Performance Certification (by Korean MSS), Excellent Product (by Korean PPS)

Drawings

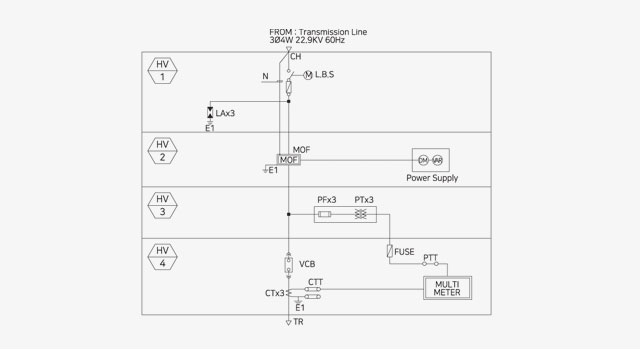

  • One-line diagram

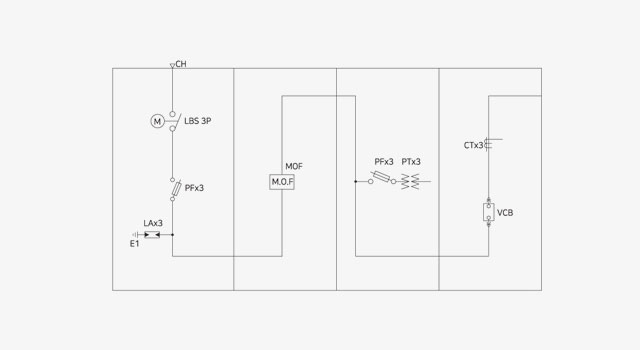

  • Basic configuration

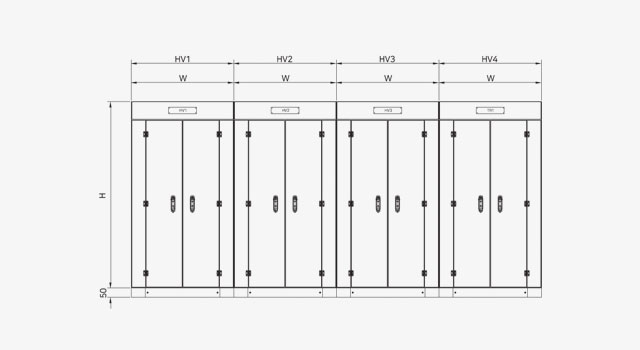

  • Front view

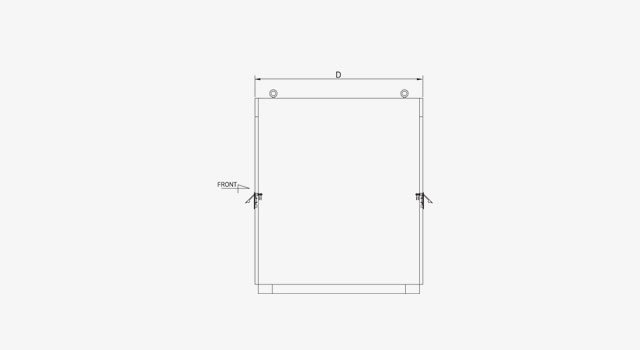

  • Right side view
