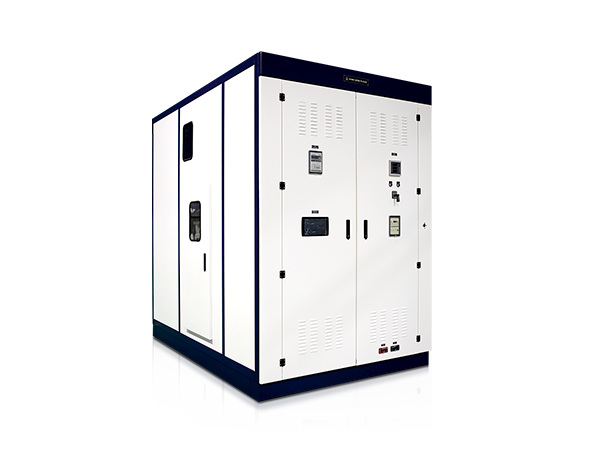

Packaged Switchboard

04.

Packaged Switchboard

  • 특허
  • 조달청 조달우수제품
  • 한국산업기술시험원 K 마크
  • 성능인증 마크

Features of Packaged Switchboard

  • Simplified receiving facility below 22.9kV/380-220V/1000kVA
  • Accommodates one transformer / Digital instrument
  • Both high- and low- voltages can be used on one side of the switchboard
  • Allows measurement, monitoring, and control of power facilities
  • Earthquake-resistant design(optional)

Packaged Switchboard Specifications

  • Rated Voltage High : ~25.8 kV, Low : 690 V
  • Rated Frequency 60/50 Hz
  • Rated Short Time Current (1sec) Max.25 kA for High Voltage, Max.50kA for Low Voltage
  • Rated Operating Voltage AC 220V, 110V, or other customer spec.
  • Protection Degree Indoor : IP4X, Outdoor : IP55, or other customer spec.
  • Dimension (mm) (W)1600~2400, (D)2800~3500, (H)2750~, or other customer spec.
  • Certificate KERI Type Test Report (by KERI, Korea), K-Mark, Excellent Performance Certification (by Korean MSS), Excellent Product (by Korean PPS)

Drawings

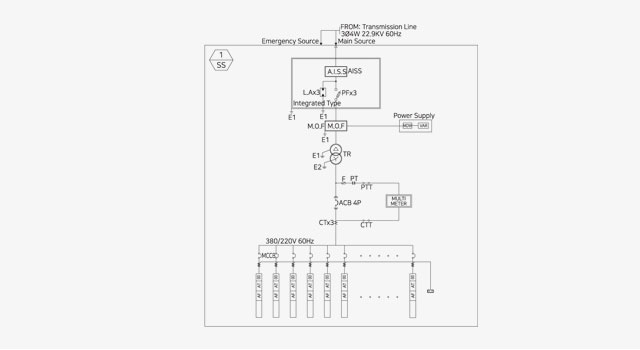

  • One-line diagram

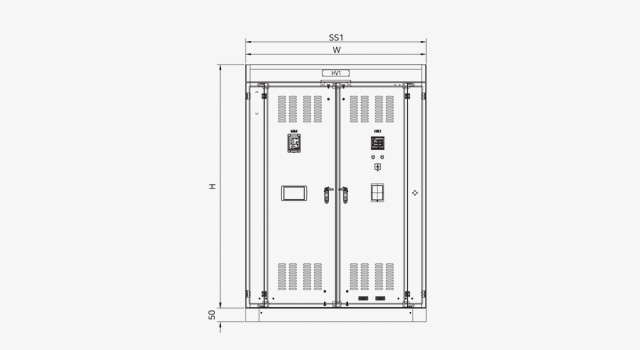

  • Front view

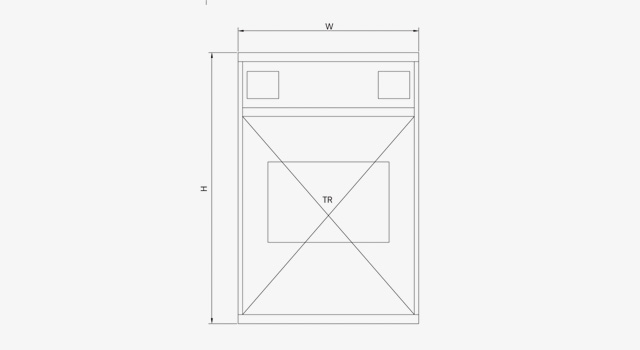

  • Bottom view
  • Right side view
